1. Complete Disable UAC step

---

Detailed information on firewall setup as well as GUI oriented tutorial could be found here.

---

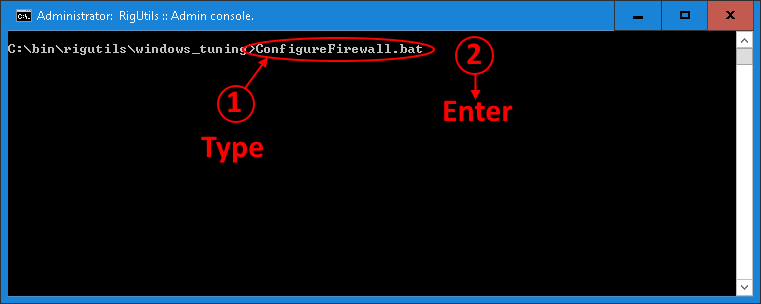

STEP 1. Launch command prompt via cmd_rigutils.bat

---

3. You don't have to do anything until the script begins to ask you questions (see STEP 3 below). Here is just a step-by-step walkthrough of actions this script performs:

---

3.1. Saving current state of firewall into a backup file

set "BackupDir=%~dp0firewall.bak"
if not exist "%BackupDir%" (
    echo == Creating backup directory ==
    echo %BackupDir%
    mkdir "%BackupDir%" || goto :exitWithError
)

if not exist "%BackupDir%\firewall.wfw" (
    echo == Saving current firewall configuration ==
    echo file: %BackupDir%\firewall.wfw
    netsh advfirewall export "%BackupDir%\firewall.wfw" || goto :exitWithError
)

Output:

== Creating backup directory ==
C:\bin\rigutils\windows_tuning\firewall.bak

== Saving current firewall configuration ==
file: C:\bin\rigutils\windows_tuning\firewall.bak\firewall.wfw
Ok.

For restoring of your original firewall configuration use the command:
  netsh advfirewall import C:\bin\rigutils\windows_tuning\firewall.bak\firewall.wfw
or the following command if you want to restore default Windows settings:
  netsh advfirewall reset

---

3.2. Disabling ALL non BLOCKING inbound rules

This nice one-liner powershell script loops through all inbound rules which allow connections and disables them one by one

powershell -Command "& { $fw=New-object -comObject HNetCfg.FwPolicy2 ; $fw.rules | where-object { $_.Direction -eq 1 -and $_.Enabled -eq $true -and $_.Action -ne 0 } | ForEach { echo $_.Name; $_.Enabled=0 }; $rc=@($rules).Count; echo ' ' \"$rc firewall rules were disabled\" }" || goto :exitWithError

Output:

== Disabling ALL PERMISSIVE inbound rules ==
<A lengthy list of disabled rules goes here>

201 firewall rules were disabled

For restoring of your original firewall configuration use the command:
  netsh advfirewall import C:\bin\rigutils\windows_tuning\firewall.bak\firewall.wfw
or the following command if you want to restore default Windows settings:
  netsh advfirewall reset

---

3.3. Disabling IPv6 Detailed information on IPv6 enabling/disabling could be found here at support.microsoft.com

set "RegPath=HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip6\Parameters"
set "RegValue=255"

echo RegPath: %RegPath%
echo RegValue: %RegValue%

reg.exe ADD %RegPath% /v DisabledComponents /t REG_DWORD /d %RegValue% /f || goto :exitWithError

Output:

== Disabling IPv6 ==
RegPath: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip6\Parameters
RegValue: 255
The operation completed successfully.

---

3.4. Activating the restrictive firewall policy

Read this nice blog post on working with firewall from CLI.

echo == Configuring firewall policy ==
echo deny ALL INCOMING connections with NO MATCHING rules and allow ALL OUTGOING connections

netsh advfirewall set allprofiles firewallpolicy blockinbound,allowoutbound || goto :exitWithError

echo To re-enable ALL INCOMING connections by default run the following command:
echo   netsh advfirewall set allprofiles firewallpolicy allowinbound,allowoutbound

Output:

== Configuring firewall policy ==
deny ALL INCOMING connections with NO MATCHING rules and allow ALL OUTGOING connections
Ok.

To re-enable ALL INCOMING connections by default run the following command:
  netsh advfirewall set allprofiles firewallpolicy allowinbound,allowoutbound

---

3.5. Explicitly blocking well know ports and applications

Quote from block ports guide:

You may call me paranoid, but steps described in the configure firewall guide were just a passive defense. I would like to take a more proactive approach against possible network attacks.

During this step the following ports/applications will be blocked:

1. Windows RPC¹⁾ - TCP/UDP ports 135²⁾, 593³⁾, 49664-49675⁴⁾

2. Windows Deployment Services (WDS)⁵⁾ - TCP/UDP port 5040⁶⁾

Please note that by disabling NETBIOS ports you will be not able to share folders or disks from your computer any more.

3. NetBIOS⁷⁾ Name Service - TCP/UDP port 137 ⁸⁾

4. NetBIOS Datagram Service - TCP/UDP port 138 ⁹⁾

5. NetBIOS Session Service - TCP/UDP port 139¹⁰⁾

6. TCP NetBIOS helper - TCP port 445¹¹⁾

7. UPnP Service - TCP port 5000¹²⁾

8. DNSCache Service - TCP/UDP port 5353¹³⁾

9. Windows Update Delivery Optimization - TCP/UDP port 7680¹⁴⁾

10. Windows Remote Desktop Protocol RDP - TCP port 3389¹⁵⁾

This is a function for managing rules creation. First it checks the existence of a rule with a given name and create the rule if necessary after that.

:inboundRule
    set "action=%~1"
    set "proto=%~2"
    set "port=%~3"
    set "serviceName=%~4"
    set "ruleName=[%action%] %serviceName% %proto%-%port%"

    rem Select enabled inbound rule with the given name
    powershell -Command "& { try { $fw=New-object -comObject HNetCfg.FwPolicy2; $fw.rules | where-object { $_.Direction -eq 1 -and $_.Name -eq '%ruleName%' } | ForEach { exit 1 }; exit 0 } catch { write-host "\"Exception Message: $($_.Exception.Message)\"" -ForegroundColor Red; exit 2 } }"

    if ERRORLEVEL 2 exit /b 1 rem ERROR
    if ERRORLEVEL 1 exit /b 0 rem echo Already exists

    rem echo NOT FOUND
    echo %proto%: %port%, rule: %ruleName%
    netsh advfirewall add rule dir=in action=%action% protocol=%proto% localport=%port% name="%ruleName%" >nul || exit /b 1
    echo OK

exit /b 0

Here is code for disabling it all:

echo == Creating explicit BLOCK rules for known Windows services ==

call :inboundRule block TCP 135 "Windows RPC" || goto :exitWithError
call :inboundRule block UDP 135 "Windows RPC" || goto :exitWithError
call :inboundRule block TCP 593 "Windows RPC" || goto :exitWithError
call :inboundRule block UDP 593 "Windows RPC" || goto :exitWithError
call :inboundRule block TCP 5040 "Windows RPC" || goto :exitWithError
call :inboundRule block TCP 49664-49675 "Windows RPC" || goto :exitWithError
call :inboundRule block UDP 49664-49675 "Windows RPC" || goto :exitWithError
call :inboundRule block TCP 137 "NetBIOS Name Service" || goto :exitWithError
call :inboundRule block UDP 137 "NetBIOS Name Service" || goto :exitWithError
call :inboundRule block TCP 138 "NetBIOS Datagram Service" || goto :exitWithError
call :inboundRule block UDP 138 "NetBIOS Datagram Service" || goto :exitWithError
call :inboundRule block TCP 139 "NetBIOS Session Service" || goto :exitWithError
call :inboundRule block UDP 139 "NetBIOS Session Service" || goto :exitWithError
call :inboundRule block TCP 445 "TCP NetBIOS helper" || goto :exitWithError
call :inboundRule block TCP 5000 "UPnP Service" || goto :exitWithError
call :inboundRule block UDP 5353 "DNSCache Service" || goto :exitWithError
call :inboundRule block UDP 5355 "DNSCache Service" || goto :exitWithError
call :inboundRule block TCP 7680 "Windows Update Delivery Optimization" || goto :exitWithError
call :inboundRule block UDP 7680 "Windows Update Delivery Optimization" || goto :exitWithError

echo.
echo Use the command to delete a created rule if you want to unblock a port:
echo   netsh advfirewall firewall delete rule protocol=^<tcp^|udp^> localport=^<port^> name="<rule>"

Output:

== Creating explicit BLOCK rules for known Windows services ==
TCP: 135, rule: [block] Windows RPC TCP-135...OK
UDP: 135, rule: [block] Windows RPC UDP-135...OK
TCP: 593, rule: [block] Windows RPC TCP-593...OK
UDP: 593, rule: [block] Windows RPC UDP-593...OK
TCP: 5040, rule: [block] Windows RPC TCP-5040...OK
TCP: 49664-49675, rule: [block] Windows RPC TCP-49664-49675...OK
UDP: 49664-49675, rule: [block] Windows RPC UDP-49664-49675...OK
TCP: 137, rule: [block] NetBIOS Name Service TCP-137...OK
UDP: 137, rule: [block] NetBIOS Name Service UDP-137...OK
TCP: 138, rule: [block] NetBIOS Datagram Service TCP-138...OK
UDP: 138, rule: [block] NetBIOS Datagram Service UDP-138...OK
TCP: 139, rule: [block] NetBIOS Session Service TCP-139...OK
UDP: 139, rule: [block] NetBIOS Session Service UDP-139...OK
TCP: 445, rule: [block] TCP NetBIOS helper TCP-445...OK
TCP: 5000, rule: [block] UPnP Service TCP-5000...OK
UDP: 5353, rule: [block] DNSCache Service UDP-5353...OK
UDP: 5355, rule: [block] DNSCache Service UDP-5355...OK
TCP: 7680, rule: [block] Windows Update Delivery Optimization TCP-7680...OK
UDP: 7680, rule: [block] Windows Update Delivery Optimization UDP-7680...OK

Use the command to delete a created rule if you want to unblock a port:
  netsh advfirewall firewall delete rule protocol=<tcp|udp> localport=<port> name="<rule>"

---

STEP 3. Allow selected inbound connections

Some of programs running at your rig may publish useful information via its web interface accessible through a browser, if you followed all the above steps to harden your firewall setup, then you have to take care of opening selected ports for allowing inbound connections.

---

3.1. Almost each miner software has its own web interface. Although I'm not recommending to use it due to security concerns, here is the code which may help you to configure your firewall for allowing such a traffic. You have to know which port is used by your miner, in most cases you may specify just any port number above 1024 here and put it in miner's configuration file. The following fragment of the script will ask you couple of questions - Would you like to use web GUI at all and its port number:

set /p allowWebGUI="Would you like to use your miner's Web GUI^? If 'yes' press 1:" || set "allowWebGUI=0"

if /i "y" == "%allowWebGUI%" set "allowWebGUI=1"
if "1" == "%allowWebGUI%" (
    set /p webGUIPort="Enter a Web GUI port number or 0 to cancel:" || set "webGUIPort=0"

    rem Validating input
    set /a "portNumber=!webGUIPort!"
    if "!portNumber!" neq "!webGUIPort!" set /a portNumber=0

    if "0" == "!portNumber!" (
        echo operation canceled
    ) else (
        call :inboundRule allow TCP !webGUIPort! "Miner Web GUI" || goto :exitWithError
    )
)

Output:

== Allow individual services ==
Would you like to use your miner's Web GUI? If 'yes' press 1: 1
Enter a Web GUI port number or 0 to cancel: 9087
TCP: 9087, rule: [allow] Miner Web GUI TCP-9087...OK

---

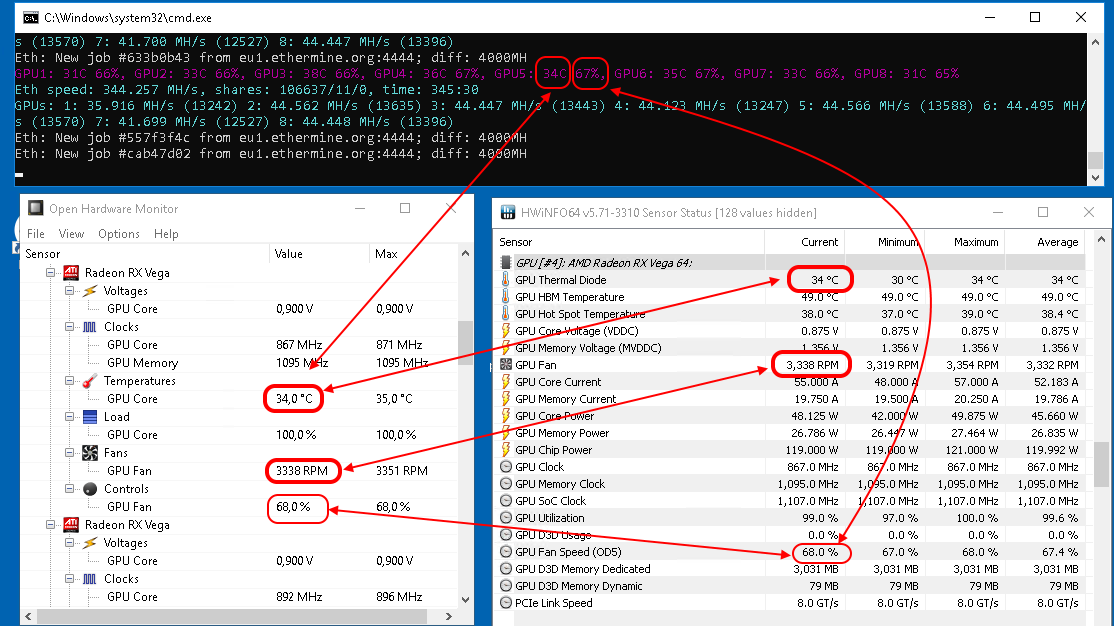

set /p allowOHMWebGUI=Would you like to use "Open Hardware Monitor" Web GUI? If 'yes' press 1: || set "allowOHMWebGUI=0"

if /i "y" == "%allowOHMWebGUI%" set "allowOHMWebGUI=1"
if "1" == "%allowOHMWebGUI%" (
    call :inboundRule allow TCP 8085 "Open Hardware Monitor Web GUI" || goto :exitWithError
)

Output:

Would you like to use "Open Hardware Monitor" Web GUI? If 'yes' press 1: y
TCP: 8085, rule: [allow] Open Hardware Monitor Web GUI TCP-8085...OK

---

3.3. Configuring RDP server.

RDP states for Remote Desktop Protocol It's an MS invention for working with your desktop over network connection. Watch this tutorial at YouTube. By default RDP server works on TCP,UPD port 3389. Unfortunately, it's became a quite popular target for hackers. Strong password for your remote user is a must and I also recommend to change¹⁶⁾ the default port number to some random one. Most of automatic scanning bots will test just 3389 and will not try to scan the whole range of ports (1-65535) to find your RDP server. It'll not protect your from a determined hacker, but may reduce number of brute-force attacks. Using of OpenVPN or a similar VPN solution is highly recommended if you plan to access your rig from Internet.

Well, too much words, code is much shorter:

set /p allowRDP=Would you like to use Remote Desktop on your PC? If 'yes' press 1: || set "allowRDP=0"

if /i "y" == "%allowRDP%" set "allowRDP=1"
if "1" == "%allowRDP%" (
    call :allowRDP
) else (
    call :inboundRule block TCP 3389 "Windows Remote Desktop - RDP" || goto :exitWithError
)

:allowRDP
    set "rdpPort=3389"

    set /p changeRDPort=Would you like to change default RDP port-%rdpPort% ^(recomended^)? If 'yes' press 1: || exit /b 0

    if /i "y" == "%changeRDPort%" set "changeRDPort=1"
    if "1" == "%changeRDPort%" (
        set /p rdpPort=Enter RDP port number or 0 to cancel: || exit /b 0

        rem Validating input
        set /a "portNumber=!rdpPort!"
        if "!portNumber!" neq "!rdpPort!" set /a rdpPort=0
    )

    if "0" == "!rdpPort!" (
        echo action canceled
        exit /b 0
    )

    call :inboundRule allow TCP !rdpPort! "Windows RDP" || goto :exitWithError
    call :inboundRule allow UDP !rdpPort! "Windows RDP" || goto :exitWithError

    echo updating RDP port number in registry
    reg.exe ADD "HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp" /v PortNumber /t REG_DWORD /d !rdpPort! /f || goto :exitWithError

    echo restarting RDP service to changes take effect
    powershell -Command "Restart-Service -Force -Verbose TermService"

exit /b 0

Output

Would you like to use Remote Desktop on your PC? If 'yes' press 1: y
Would you like to change default RDP port-3389 (recomended)? If 'yes' press 1: y
Enter RDP port number or 0 to cancel: 43801
TCP: 43801, rule: [allow] Windows RDP TCP-43801...OK
UDP: 43801, rule: [allow] Windows RDP UDP-43801...OK
updating RDP port number in registry
The operation completed successfully.
restarting RDP service to changes take effect
VERBOSE: Performing the operation "Restart-Service" on target "Remote Desktop Services (TermService)".

---

3.4. Restoring firewall configuration in case of troubles.

Just a reminder:

For restoring of your original firewall configuration use the command:
  netsh advfirewall import \firewall.wfw
or the following command if you want to restore default Windows settings:
  netsh advfirewall reset

---

GitHub ConfigureFirewall.bat

---
